Factory extension design Gloucester

All
Existing
Proposed

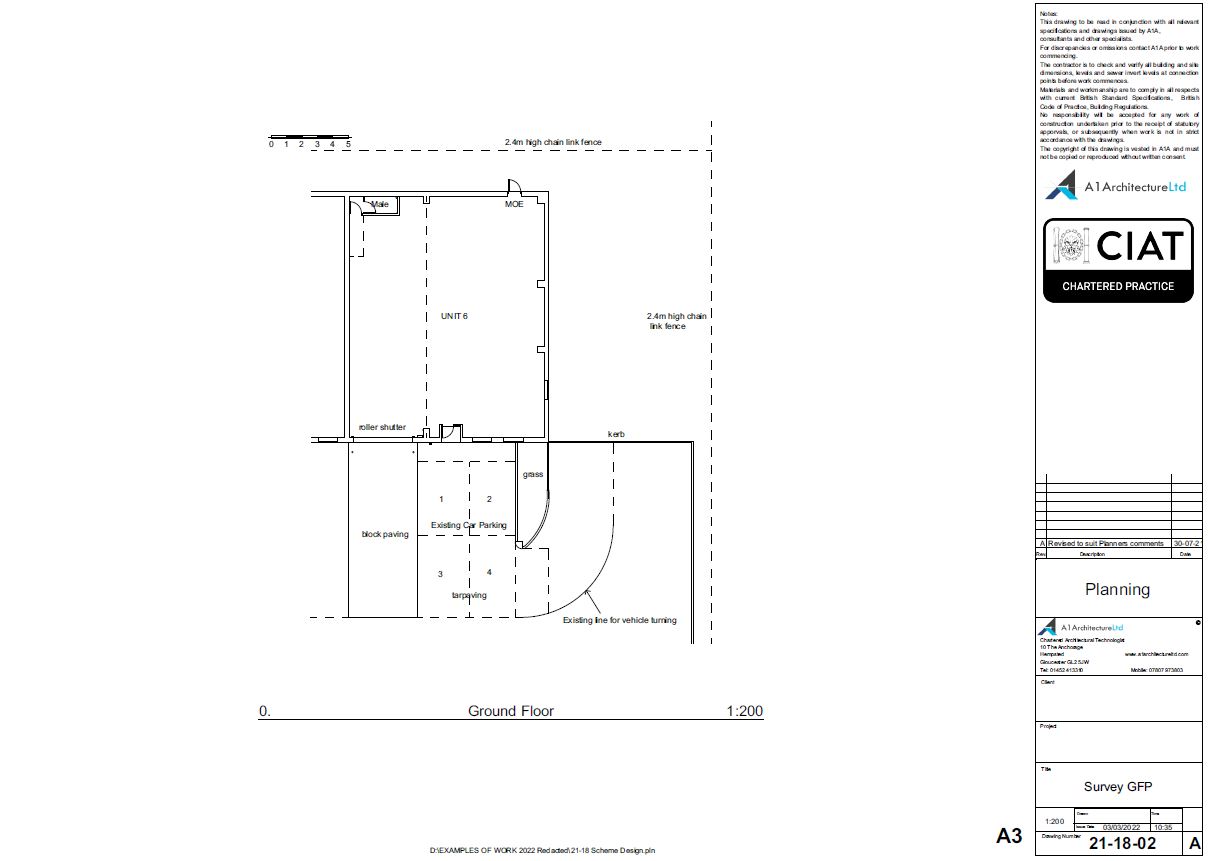

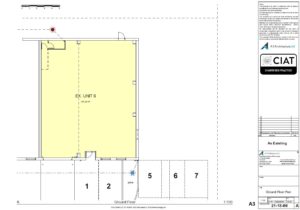

Survey floor plan for factory extension in Gloucester

Existing Ground Floor Plan

Existing Ground Floor Plan

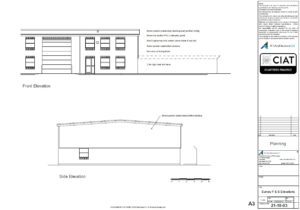

Survey elevations for factory extension in Gloucester

Existing Elevations

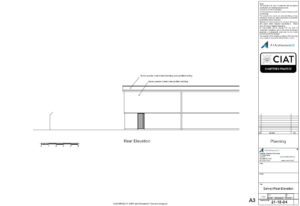

Survey rear elevation for factory extension in Gloucester

Existing Rear Elevation

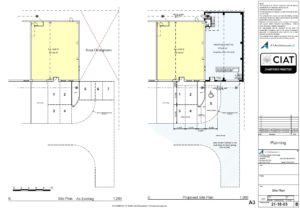

Planning floor plans for factory extension in Gloucester

Proposed Site Plan

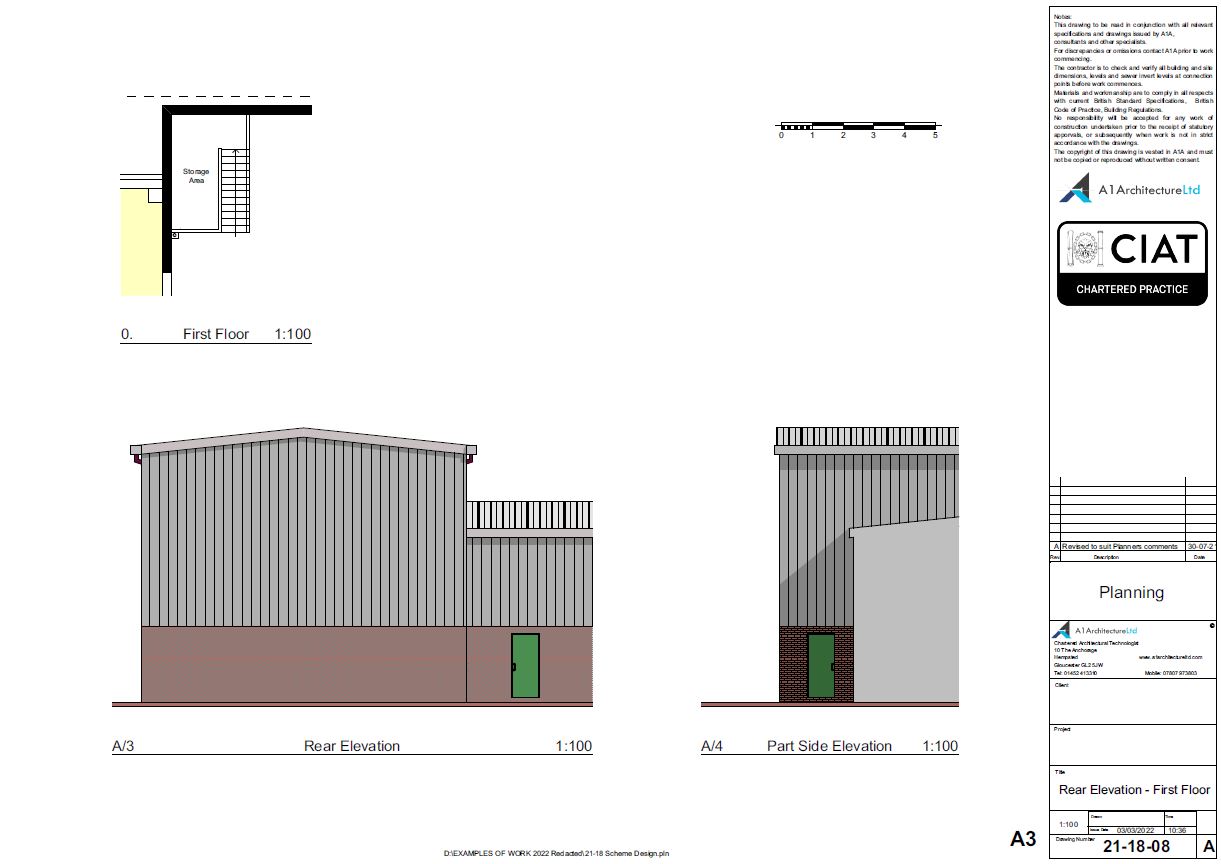

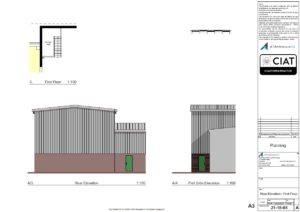

Planning elevations for factory extension in Gloucester

Proposed Elevations

Our client commissioned us to design a high bay factory extension with internal gantry crane to a unit in Gloucester.

We carried out a full measured building survey, produced all drawings and documents for all submissions and have obtained all permissions. The project will be commencing work on site shortly.
